VT-15L

Description

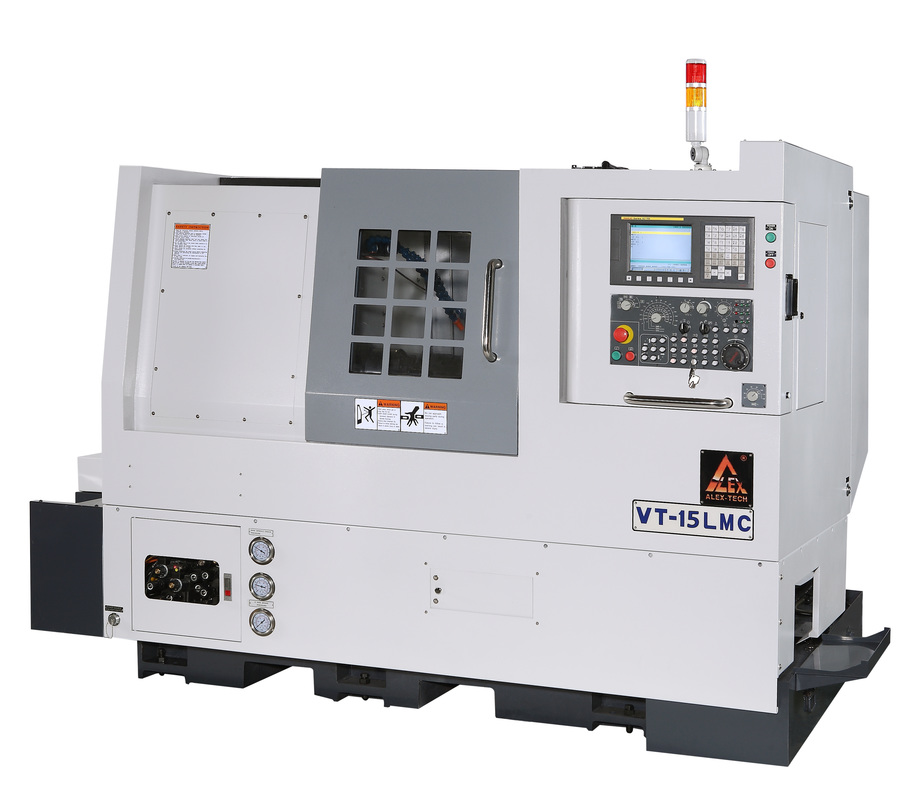

VIPER VT-15L High Precision CNC Turning Center
With: Built-in Fanuc 0i Mate TD Control, 152mm(6”) 3 Jaws Hydraulic Chuck, Max Turning Diameter 390mm (15.3”), Length 370mm(14.6”), Through bar Capacity 42mm(1.7”), 6,000rpm,15HP, Travel X-200 + 15mm (7.87”+0.59”), Z-470mm(18.5”), 12 Stations Turret, and Standard Equipment & features

STANDARD ACCESSORIES:
· Tool Box with Hand Tool
· Coolant System
· Coolant Tank Guard
· Chip Conveyor
· Hard Jaw 1 Set
· Work Lamp
· Block for Base
· Auto Lubrication System
· Heat Exchanger for Electrical cabinet
· Fluid Bearing Way System
· Foot Switch for spindle clamp / unclamp
· Hydraulic Adjustment System
· Lubrication Monitoring System
· Hydraulic Tailstock & quill (hydraulic quill and manual positioning)

Machine OPTIONS:
Oil Skimmer
CE Normative
Collect Chuck (F48)
Each Collect for Collect Chuck/Round Type/PC
Bar Feeder Interface
Bar Feeder with Control (1.5M), including the support stand
Bar Feeder with Control (1.2M)
Part Catcher with Conveyor
Spindle Motor Upgrade from 15Hp to 20Hp motor
Manual Tool Presetter (Made by Alex-Tech)
Manual Tool Presetter (Ranishaw)
Automatic Tool Presetter (Ranishaw)
Air Condition Type Heat Exchanger
Transformer
Axial type live Tool Holder (Made by WTO)
Radial type live Tool Holder (Made by WTO)
High pressure coolant pump 10 bar
High pressure coolant pump 15 bar
High pressure coolant pump 20 bar
Upgrade from Oi Mate TD to Fanuc Oi TD
(For VT-15L ONLY)
Static VDI 30 turret
6″ Soft Jaws/ Set
6″ Hard Jaws/ Set
Coolant Gun
Change to Siemens 828D control
