Description

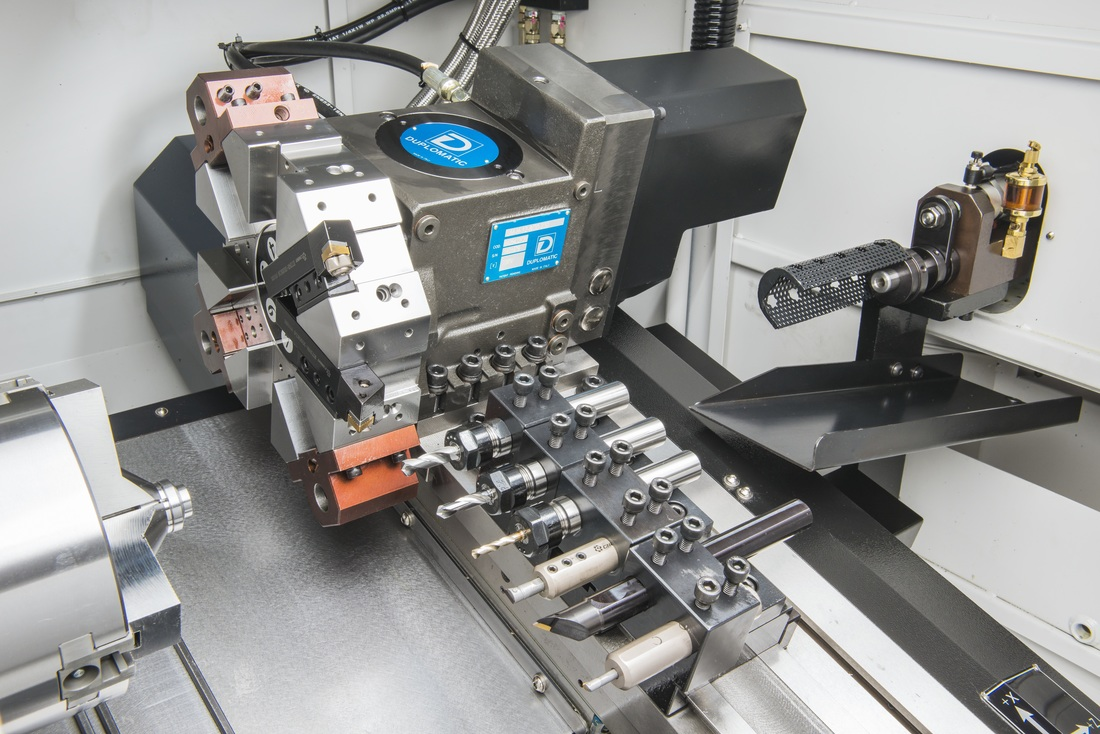

VT-10T – Fanuc 0i Mate TD – Gang Tools + Turret
Includes: Spindle nose A2-5 (6”) 3 Jaw Chuck, or 16C Collet Chuck, 5000rpm, 42mm (1.65”) Bar Capacity, 15HP, Maximum Turning Length 120mm (4.72”), Maximum Turning Diameter 120mm (4.72”), 8 Station Static Turret, X/Z: 591ipm, Coolant System
Includes: Spindle nose A2-5 (6”) 3 Jaw Chuck, or 16C Collet Chuck, 5000rpm, 42mm (1.65”) Bar Capacity, 15HP, Maximum Turning Length 120mm (4.72”), Maximum Turning Diameter 120mm (4.72”), 8 Station Static Turret, X/Z: 591ipm, Coolant System
|
Standard Accessories
Gang Tools( for VT-10) Tool Plate 1 set Single Boring Tool Holder (20mm) 1 set Double Tool Holder (16mm) 1 set Right side Tool Holder (16mm) 1set Left side Tool Holder (16mm) 1set Gang Tools( for VT-10T/10TT) Tool Plate 1 set Single Boring Tool Holder (20mm) 3 sets Twin Boring Tool Holder (20mm) 1 set Tool Box with Hand Tool Coolant System Coolant Tank Guard Work Lamp Block for Base Lubrication System 6” Hydraulic Cylinder 1 Set 6” Hard Jaw 1 Set 8 stations Static Turret (Only For VT-10T/10TT) MT-3 Manual Tailstock with Hydraulic Quill (Only For VT-10TT) Foot Switch for spindle clamp / unclamp Convection heat exchanger in Control Box Operation Manual and Electric Manual |
Machine OPTIONS:
Oil Skimmer
Collect Chuck (F48)(for VT-10/10T/10TT) 5C collet Chuck (for VT-8) Bar Feeder Interface Ready (Factory Order) Bar Feeder with Control (1.5M), including the support stand Bar Feeder with Control (1.2M) Rear Part Catcher Air Condition Type Heat Exchanger Chip Conveyor Chip Cart Transformer CE Normative High Pressure Coolant Pump 10 bar High Pressure Coolant Pump 15 bar High Pressure Coolant Pump 20 bar 5” Soft Jaws 5” Hard Jaws 6” Soft Jaws 6” Hard Jaws Oil Moist Collector Split MPG Air gun Upgrade from Oi Mate TD to Fanuc Oi TD |
Reviews
There are no reviews yet.
